Harken 16mm Air Fixed Single Block - 404
Harken 16mm Air Fixed Single Block - 404
Regular price
$17.95 USD
Regular price
Sale price
$17.95 USD
Unit price
/
per
Couldn't load pickup availability

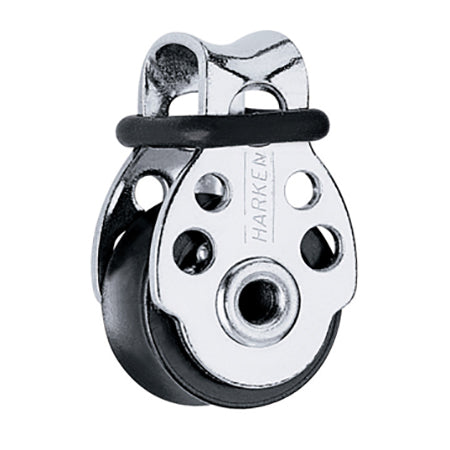

Harken 16mm Air Fixed Single Block
The 16 mm is Harken’s® smallest block. It is perfect for small synthetic control lines found on high-tech dinghies. The patented bearing system uses stainless steel balls in a captive grooved race and has a 250 lb (113 kg) maximum working load. The 404 uses an O-ring to keep the line in the sheave during intermittent loading.
| Specifications | ||
|---|---|---|
| Sheave Dia. | 5/8 in | 16 mm |
| Length. | 1 1/8 in | 29 mm |
| Weight | .38 oz | 11 g |
| Maximum Line Dia. | 7/32 in | 5 mm |
| Maximum Working Load | 250 lbs | 113 kg |
| Breaking Load | 1200 lbs | 544 kg |
